Crib Gogh Rogue Scalable Tactical Armour Vest System
£339.99
[wpforms id="683261"]

Crib Gogh Rogue Scalable Tactical Armour Vest System. Ultimate Comes as Standard.

Crib Gogh – For The Ultimate Equipment to Survive the Extremities the World has to Offer

Designed and developed in the UK with a test team having a unique skill set that sets new standards in design development and delivery of specialist equipment. Products currently used by a unique clientele from numerous militaries and special forces around the world to British Antarctic Survey and polar rescue teams.

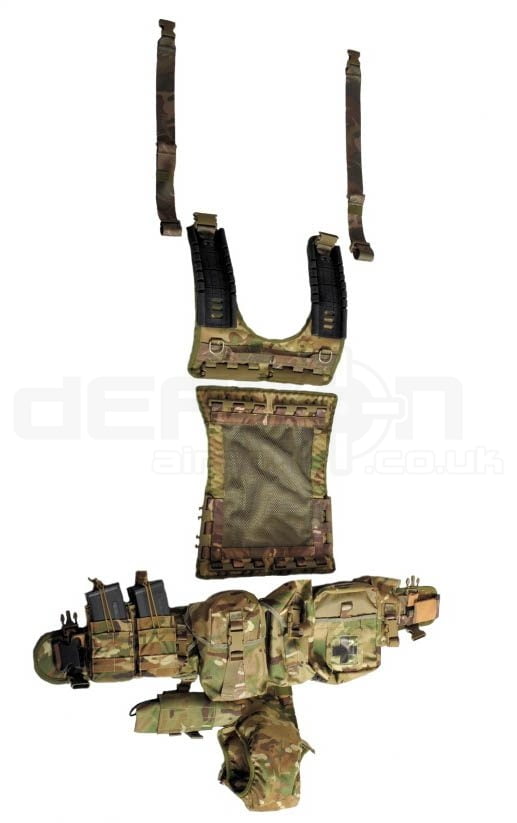

Designed to scale up or down to meet the needs of the operational requirement that allows an SF team to determine the level of protection required as the threat level increases.

The Rogue Tactical vest is totally modular and is a chassis based system that has the only 120ltr Bergen system that will work with a tactical vest. This is the only system that starts as a belt order and morphs to whatever the operational need is. It has two purpose designed rucksacks that allow it to have complete modularity like no other It was based on the innovations of the Spartan Tactical system developed for Special Forces.

The Rogue Tactical vest with full soft/hard armour options was developed with a trauma surgeon and a spinal surgeon from the RCP (Royal College of Physicians) and complies with BS 13407-1999. All the Rogue designs have a stress tolerance to exceed a 100 kilo pay-load. They are designed to protect the spine and distribute weight correctly along the back, reducing wear and problems later in life with the lumbar region of the spine.

The front is designed with the same ethos as the back with full energy dissipation qualities and weight distribution benefits. All the bar-tacks machined-in exceed the industry standard and have set new breaking strains, to the point where the vests will not only allow a wounded colleague to be dragged to safety, but will in fact tow a transit van. (Torque on a transit van is 3200nm, our breaking strain is 3411nm)

The system is completely unique, UK European and US patented and with design copy right. It consists of the following features:

Features:

  • Better weight distribution padding
  • Enhanced cooling and ventilation
  • Tailored fit for better ergonomics
  • Dedicated rubber rifle butt stop in the shoulders
  • Designed to work with a full belt order
  • Dedicated Perinea protector
  • Quadriplegic blast protection
  • 360° blunt force trauma protection
  • Lift loops (allows for a casualty helicopter lift through a canopy or mountain drop if injured)
  • Silhouette design of the plate pockets (reducing the targeting capabilities of a sniper)
  • Dedicated shaped ballistic plate pockets
  • Available in all DPM designs
  • 600d/1000d rip-stop Cordura
  • MOLLE/PALS compatible
  • Compatible with tier one blast boxers
  • Less than 10s quick access and assembly (no Velcro hook and loop)
  • 70% increase in survivability
  • 4 size options giving 12 different fits
  • Dedicated Rucksack Optional extra (CLQF1118)
  • Air-vent circulation for cooling and to wick sweat away
  • All components are IRR compliant
  • 600d Rip-Stop Cordura (Disruptive Patterns)
  • The only system that does three systems in one
  • Unique patented buckle system that allows you to scale up or down in under a minute
  • No Velcro failure or noise issues

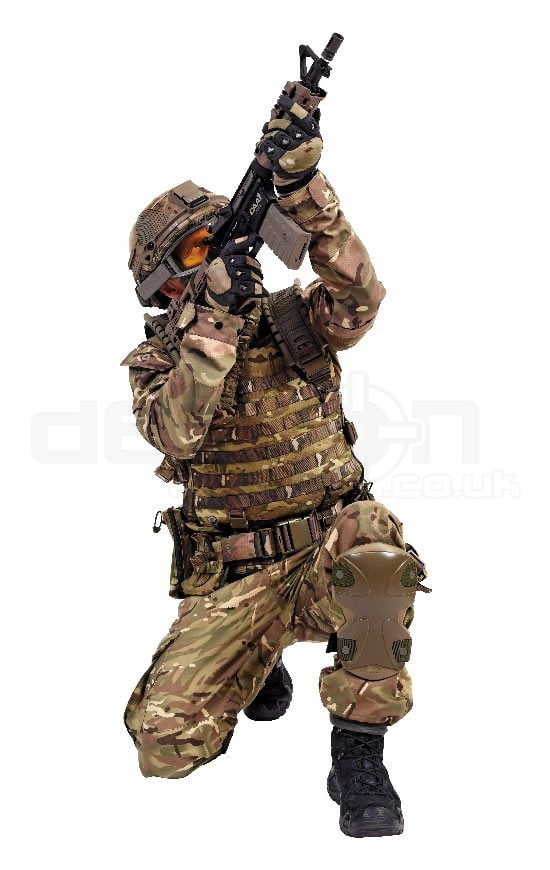

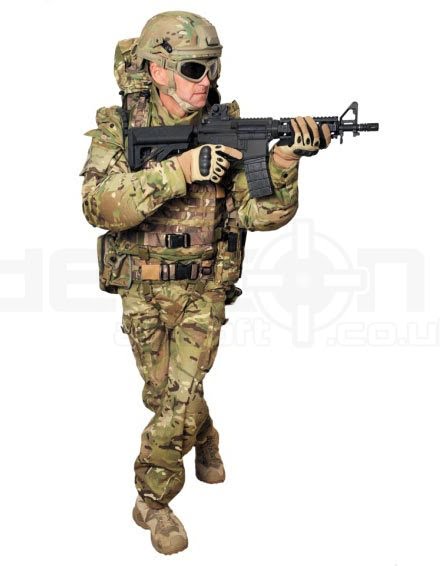

Designed to work with a full belt order to enhance operational capability and eliminates vest/plate lock as with current systems. This allows the dismount full diagonal and lateral movement enhancing agility, fire drills and combat effectiveness. It can scale up to a chest rig to a full ballistic vest. Our new Patented buckle system is the only one that allows you to scale up or down in less than a minute and with no Velcro (hook and loop) on the system to fail. Rogue allows full lateral and diagonal movement and meets all dynamic shooting drills and all military kinetic drills

On three independent ballistic tests the Rogue vest came first for energy dissipation, and was hailed as 70% better than the next best NATO vest on the trial.

Helston Forensic Laboratory stated “A 70% increase in survivability is offered in the Crib Gogh vest over the next best vest in service at this time”

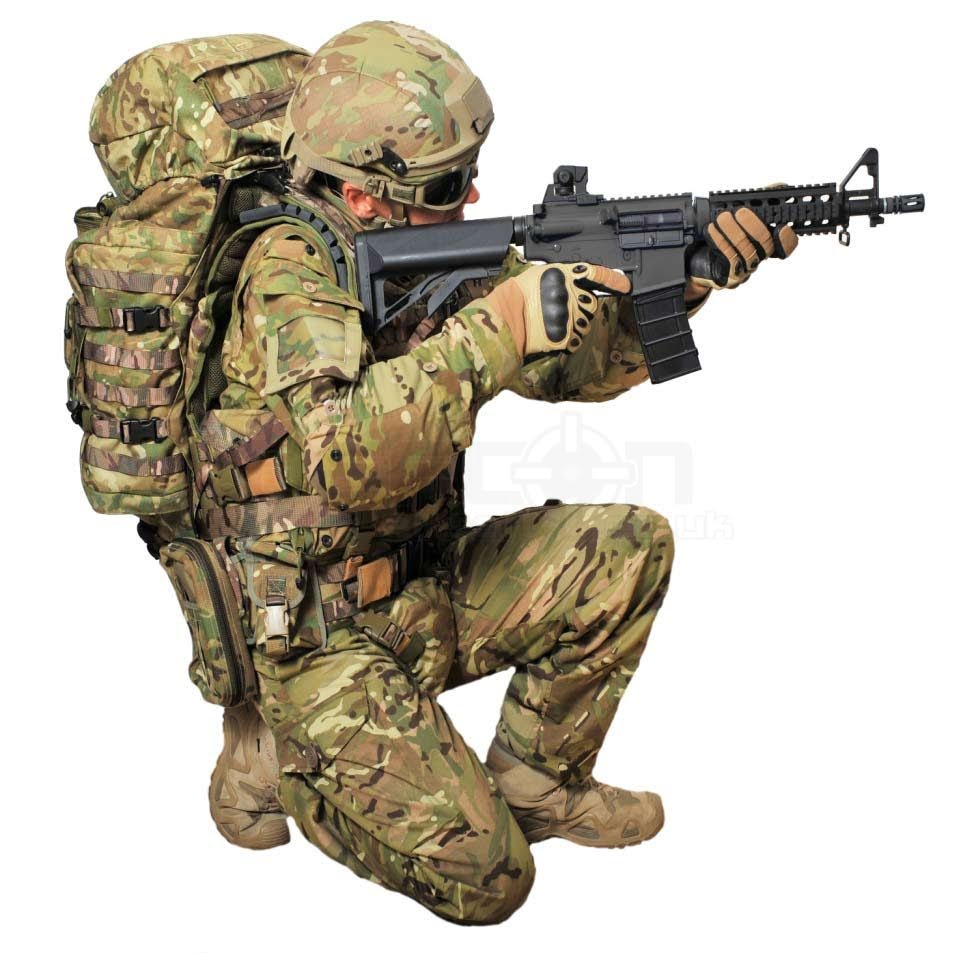

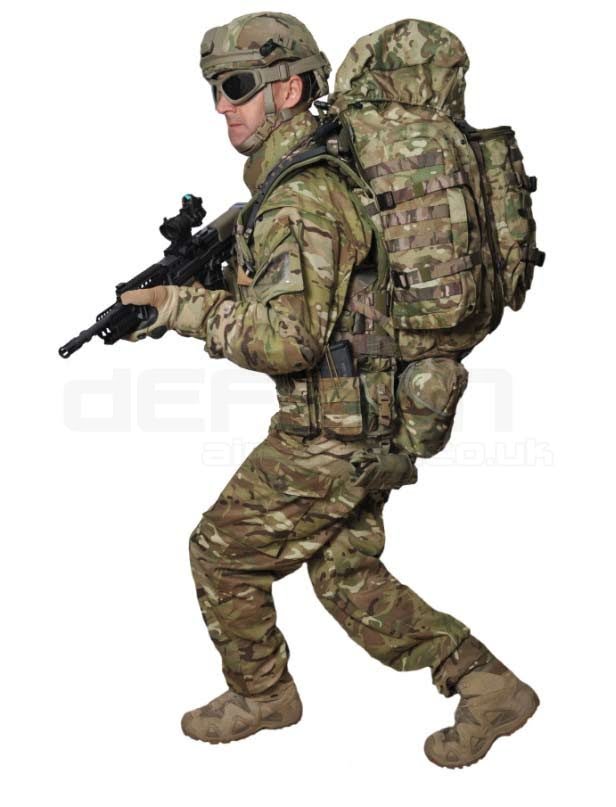

Options include the Spartan Light rucksack designed and dedicated to work with a ballistic vest, as well as the Rogue 90+ltr Bergen, the only Bergen designed to be worn with full ballistic protection. Unique in their approach, it has a torsion system that allows for the rear plate to be encapsulated in the curve, allowing for a completely integrated fit. It has a quick release mechanism to release the rucksack in less than 5 seconds.

The Rogue vest and all of its add-ons have extensive and exhaustive testing through a variety of terrains and environments. Rather than follow the current industry standards we created new bench marks that the others will have to follow

Independently certified to STANAG 2895

The Rogue LCP is in Service with a number of units and is fully codified

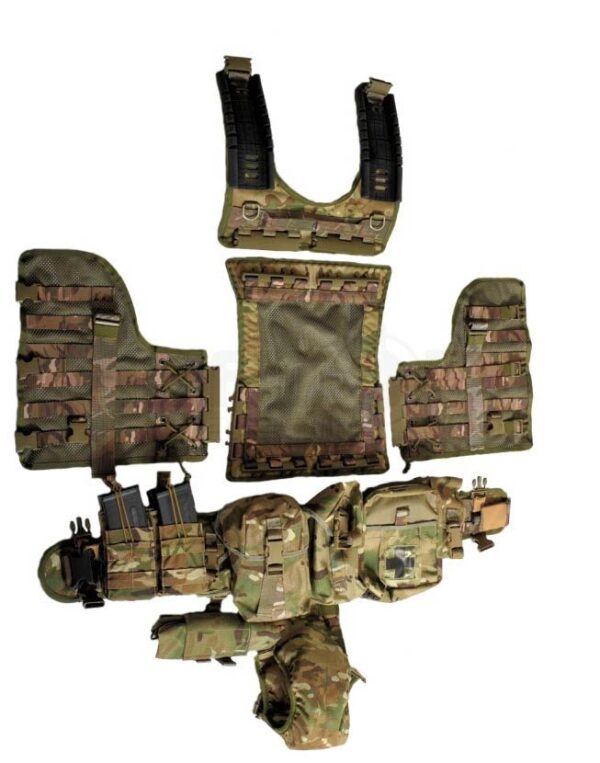

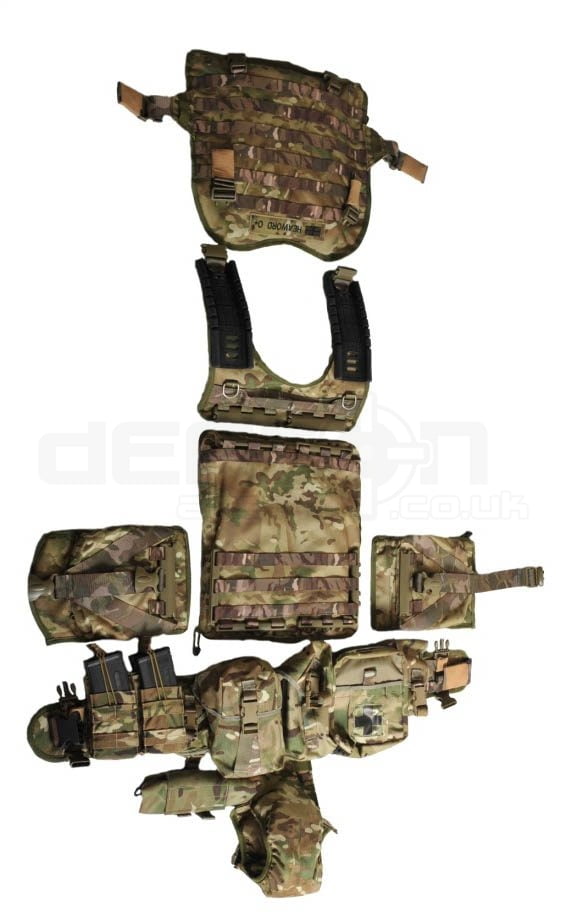

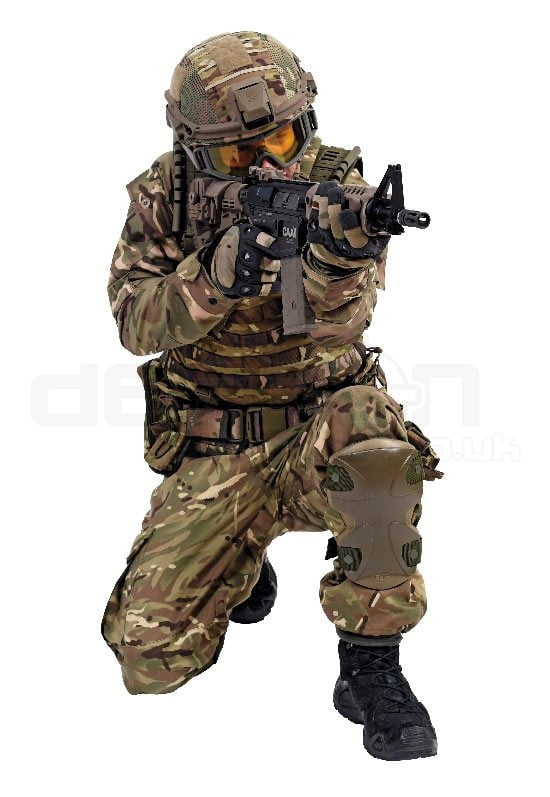

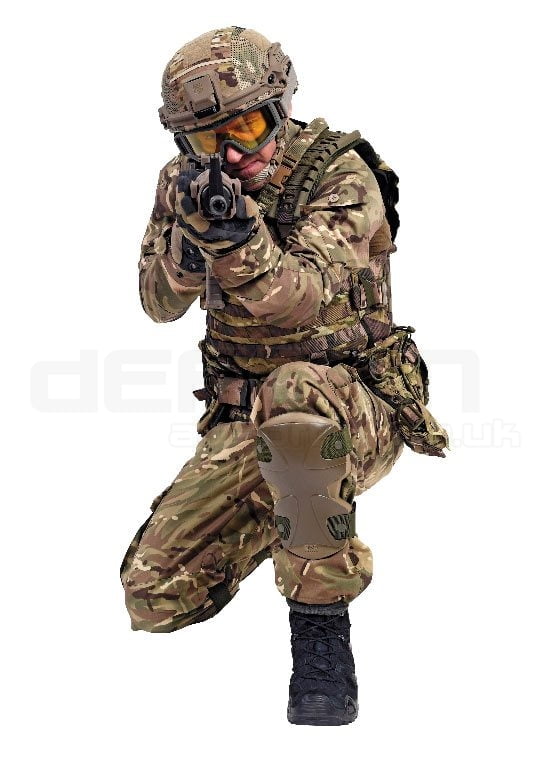

Everything is supplied as shown in the main image except the pouches on the belt which we can supply seperately.

Additional information

Technical Specification

Testing Standards and Specifications Attained

#1
Material Colour Fastness to light: Woven 100% Polyester (Black x1 OD Green x1)
Standard Reference ISO 105 B02-2000/Amendment 2:2000; Uses Xenon arc lamp
Testing House SGS Hong Kong
Testing House Reference HKSL13102338b05/D TX
Test Date 5th January 2017
Result Grade (B.S.) 6 + Above

#2
Material Tensile Strength: Woven 100% Polyester (Black x1 OD Green x1)
Standard Reference ISO 1394-1-1999: Instron CRE-2” Strip
Testing House SGS Hong Kong
Testing House Reference HKSL13102338b05/D TX
Test Date 5th January 2017
Result Warp (N) 289.7 Weft (N) 309.7

#3
Material Tensile Strength: Woven 100% Polyester (Black x1 OD Green x1)
Standard Reference ISO 1394-1-1999: Instron CRE-1” Grab
Testing House SGS Hong Kong
Testing House Reference HKSL13102338b05/D TX
Test Date 5th January 2017
Result Strength (N) 2748 Maximum

#4
Material Tear Strength: Woven 100% Polyester (Black x1 OD Green x1)
Standard Reference ISO 13937-2000; – Elmendorf
Testing House SGS Hong Kong
Testing House Reference HKSL13102O2768TX
Test Date 5th January 2017
Result Warp Yarns (N) >64, Weft Yarns (N) >64

#5
Material Water Resistance: Woven 100% Polyester (Black x1 OD Green x1)
Standard Reference ISO 811-1981; Hydrostatic Head; Rate of increase water pressure:
60cm/min, Temperature of distilled water 20c
Testing House SGS Hong Kong
Testing House Reference HKSL13102O2768TX
Test Date 5th January 2017
Result
Side facing water column 1# 2# 3# 4# 5# Average
>1000 >1000 >1000 >1000 >1000 >1000

#6
Material Flammability (Anti-phosphorus)
Standard Reference Flammability (horizontal) per FMVSS 302 Code of federal regulations title 49
Transport section 571.302
Testing House SGS Hong Kong
Testing House Reference HKSL13102O2768TX
Test Date 5th January 2017
Result Submitted specimens meet the specified requirements of FMVSS.302

#7
Material Shoulder strap breaking strain
Standard Reference Attachment strength of strap (BS5131, Part 11:1981 (1992)
Testing House SGS Hong Kong
Testing House Reference HKSL1310202741 TX
Test Date 29th October 2013
Result Attachment strength of strap (BS5131, Part 11:1981 (1992)
2209.2 Fabric Rupture

#8
Material 3x All Buckles fitted ¾” 1” 1½”
Standard Reference Attachment strength of strap: BS5131, Part 11:1981 (1992)
Testing House SGS Hong Kong
Testing House Reference HKSL 1310338988/C TX
Test Date 5th January 2017
Result ¾” 153.62 (KG) Buckle Broken (exceeding the standard)
1” 222.16 (KG) Buckle Broken (exceeding the standard)
1½” 246.22(KG) Buckle Broken (exceeding the standard)

#9
Material Module Spun Rot-proof polyester threads (Green) Machine assembly of bag
Standard Reference Single yarn strength ISO-2062-1993
Testing House SGS Hong Kong
Testing House Reference HKLS1310370091/D TX
Test Date 29th October 2013
Result Strength G Average=3411.0 Maximum=3810.0 Minimum=3054.0
CV%=6.3 Pass to BS kite mark standard
#10
Material 2 samples of woven Zipper (black for bag) (A) YKK (B) Millon
Standard Reference Zipper Strength BS 3084-2006, Performance code C requirement Test #5 reciprocating test
Testing House SGS Hong Kong
Testing House Reference HKSL1310330964/TX
Test Date 5th January 2017
Result Sample (A) exceeds 500 cycles Sample (B) exceeds 500 cycles

#11
Material Complete manufactured rucksack designated as a Modular System by Crib Gogh Ltd
Standard Reference Defined as STANAG 2895
Testing House SGS Hong Kong
Testing House Reference HKS113102O2766 TX
Test Date 29th October 2013
Result To Freeze the rucksack at –45 C for 168 hours and test all components for 50 cycles of operation efficiency. The Test Parameter was exceeded:

#12
Material All fabric supplied by Crib Gogh that has any part of the rucksack
construction
Standard Reference One hundred and thirty eight (138) substances in the candidate list of substances of Very High Concern {SVHC} for authorization published by the European Chemicals Agency tECtlA) on Dec t9 2012 regarding regulation {EC} No 19O7/2OO6 concerning the REACH.
Testing House SGS Hong Kong
Testing House Reference SHSL 14039102286 TX(D)
Test Date 5th January 2017
Result Pass

#13
Material Rogue Long Buckle
Standard Reference Attachment strength of strap: BS5131, Part 11:1981 (1992)
Testing House SGS Hong Kong
Testing House Reference HKSL 1310337601/B TX
Test Date 5th January 2017
Result Av 169.0 (KG) Buckle Broken (exceeding the standard) Pass
