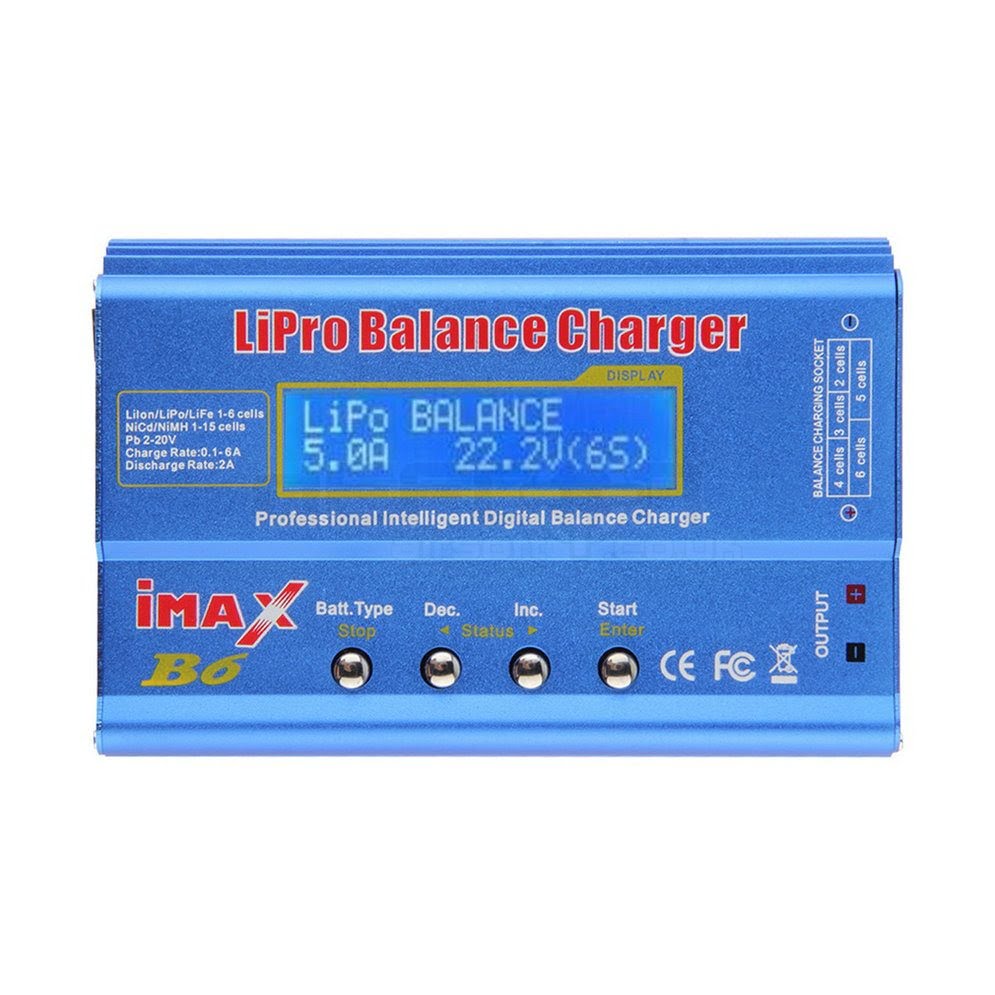

IMAX B6 is the new intelligent multifunction charger which can charge and discharge for Lion, LiPo, LiFe (A123), Pb, NiCd and NiMH batteries.
SKYRC take authenticity of their products seriously and the iMAX B6 comes with a security hologram which you can scratch to reveal a security code to verify your charger on the skyrc website
Features:
Optimised operating software
Internal independent lithium battery balancer
Balancing individual cells battery discharging
Adaptable to various type of lithium battery
Automatic charging current limit
Processing time limit
Specification:
.Operation voltage range : DC 11.0 ~ 18.0 Volt
.Circuit power : AC to DC adaptor – DC 11.0 ~ 18.0V / 5A (Power Adaptor NOT Included)
.Max. charge power 50W
.Max. discharge power 5W
.Charge current range : 0.1~5.0A
.Discharge current range : 0.1~1.0A
.Current drain for balancing Li-Po : 300mAh/cell
.NiCd / NiMH battery cell count : 1~15 cell
.Li-Ion / Polymer cell count : 1~6 series
.Pb battery voltage : 2V~20V
.Weight : 277g (Net Weight)
.Weight : 425g (Gross Weight)
.Dimensions : 133 x 87 x 33 mm
Important Note – Power Adaptor NOT Included
Recommended power supply specs as follows:
Input : 100-240 VAC 50/60Hz 5A
Output : 12V
(laptop power adaptors are often suitable)
