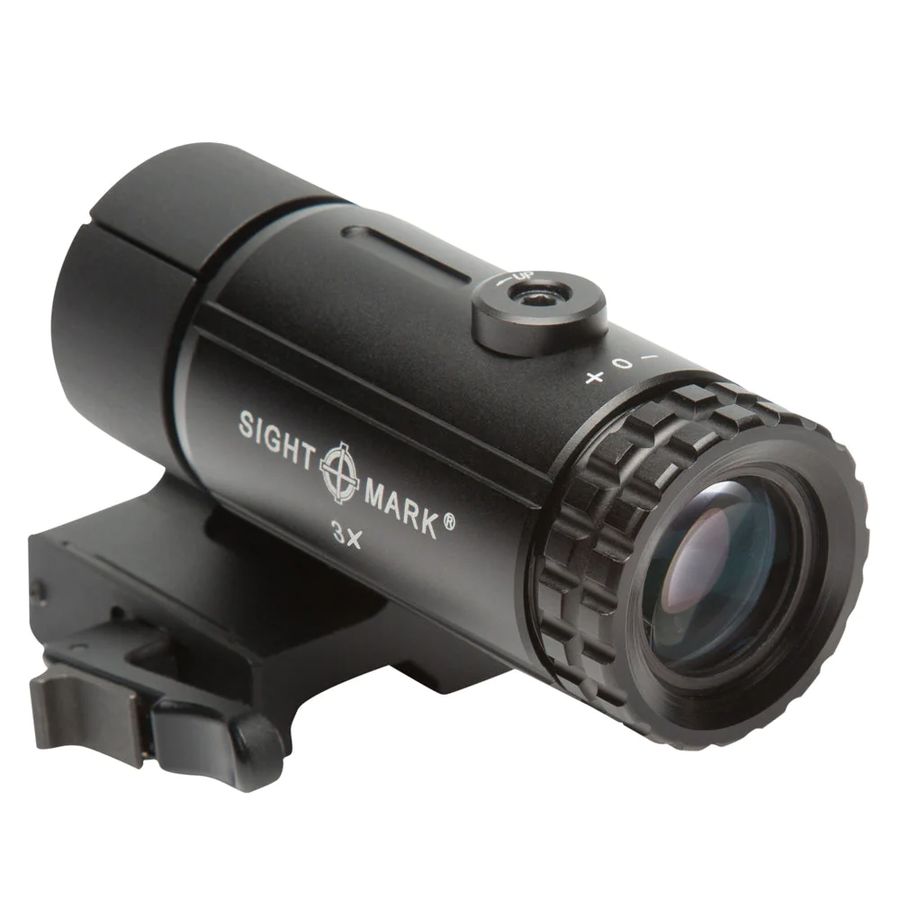

Sightmark T-3 Magnifier with LQD Flip to Side Mount
Designed to mount directly behind a reflex sight or red dot, the versatile T-3 Magnifier allows a quick and easy way to magnify your sight picture by 3x and provides an absolute co-witness. A straight tube magnifier a full .8” shorter than the model it replaces, the T-3 features a streamlined, low drag design, preventing the magnifier from snagging on equipment in important situations. Ideal for engagements up to 100 yards, if a close-range shooting scenario calls for no magnification, simply use the T-3’s flip-to-side mount to rapidly transition between the optic systems. This durable magnifier is constructed of aluminium and provides improved brightness and resolution from fully multi-coated optics. External windage and elevation adjustments align the reticle to the centre of the T-3’s point of view. EOTech® and Aimpoint® compatible, the locking quick detach mount found on the T-3 lets the magnifier be quickly removed. Sightmark T-3 Magnifiers include flip-to-side LQD mount, adjustment tools and manual.
Features
- Locking, quick detach mount for quick and easy removal
- Flip-to-side mount provides rapid transition between optical systems
- Fully multi-coated, scratch resistant
- External windage/elevation adjustment for reticle alignment
- Increases magnification of accompanying sights for greater engagement range
- EOTech® and Aimpoint® compatible
- Aluminium construction
Included in Package
- Flip to side LQD mount
- Adjustment tools
- Manual
Magnification | 3x |
---|---|
Diameter, Objective Lens | 23 mm |
Diameter, Eyepiece | 1.26/32 in/mm |
Diameter, Exit Pupil | 7.6 mm |
Eye relief (in/mm) | 2.25/57 in/mm |
Field of view, m@100m | 14.43 |
Field of view, ft@100yd | 43.3 |
Diopter Adjustment | +3 to -3 |
Diameter, Tube | 30 mm |
Maximum Recoil | .308 Calibre |
Shockproof | Yes |
Fog Proof | No |
IP Rating (waterproof) | IP55 – water resistant |
Finish/Colour | Matte black |
Body Material | Aluminium |
Lens Coating | Full Multi-coated |
Mount Type | Picatinny |
Operating temperature, F/C | -22 to 160 / -30 to 71 F/C |
Length (in/mm) | 4 / 103 in/mm |
Width (in/mm) | 2.6 / 66.2 in/mm |
Height (in/mm) | 1.67 / 42.5 in/mm |
Weight, oz | 10.6 oz. |
