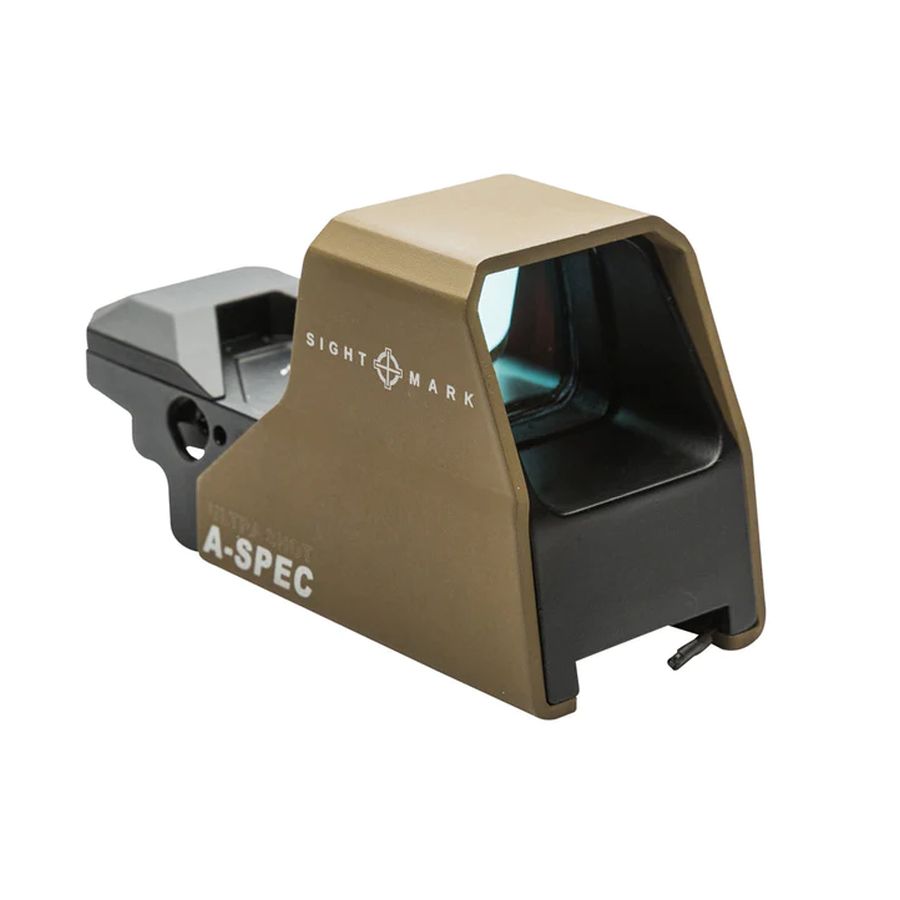

Sightmark Ultra Shot A-Spec Reflex Sight – Dark Earth
Gain quick target acquisition with the Ultra Shot A-Spec (Advanced Spec) Reflex Sight DE (SM26031DE), the ideal reflex sight for hunting, competitive shooting and law enforcement for AR platforms and shotguns. The A-Spec features a scratch-resistant and anti-reflective red coating, four red/green illuminated reticle options with 10 brightness levels, slotted windage and elevations adjustments that can be changed with a flathead or a common tool and six-night vision settings, which allow you to use the optic with compatible night vision devices. A-Specs are IP55 water resistant and feature a strong aluminium alloy housing and protective aluminium shield.
US Pat. D872219 US Pat. D872219S1
Features
- Rugged lightweight aluminium alloy housing
- Protective aluminium shield
- Quick detach picatinny mount
- Advanced parallax free lens design
- Wide lens provides quick target acquisition
- Slotted windage and elevation adjustments
- Red reticle illumination
- Low battery indication
- Digital switch controls
- 10 reticle brightness levels
- Night vision brightness modes
- 1 hour auto shut off
- Multiple reticle options
- Scratch resistant lens coating
- Interlok internal locking adjustment system
Included in Package
- Neoprene cover
- Adjustment tools
- Battery
- Manual
Batteries Used
- Type: CR123A
- Quantity: 1
| Reticle, Type | 4 Pattern – 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crosshair, 3 MOA dot with 30 MOA circle/crosshair (subtensions total 50 MOA) |
|---|---|
| Reticle, Colour | Red |
| Magnification | Off, 1-10, NV |
| Reticle Brightness Setting | 1 |
| Eye relief (in/mm) | 33×24 |
| Objective overall dimension (mm) | Unlimited |
| Elevation Adjustment | 120 MOA |
| Windage Adjustment | 120 MOA |
| Adjustment Value | 1 MOA |
| Parallax Setting | 10 / 9.1 yd/m |
| Finish/Colour | Dark Earth |
| Body Material | Aluminium 6061-T6 |
| Maximum Recoil | .50 BMG |
| Waterproof IP Standard | IP55 – water resistant |
| Shockproof | Yes, 8ft / 2.4m |
| Fog Proof | No |
| Lens Coating | AR Red |
| Nitrogen Filled | No |
| Battery Life | 200 – 2,000 Hours |
| Mount Type | Picatinny |
| Battery Type | CR123A |
| Battery Voltage, V | 3 V |
| Width | 1.96 / 50 in / mm |
| Length | 4.33 / 110 in / mm |
| Height | 2.28 / 58 in / mm |
| Weight, oz | 10.8 |
| Operating temperature, F/C | -22 to 160 / -30 to 71 |
