Sightmark Wolverine CSR Red Dot Sight
The Sightmark Wolverine CSR Red Dot Sight is a close-range optic designed specifically for shotguns and short barrelled rifles. The CSR sports a 4 MOA red dot reticle with a 23mm objective lens and adjustable digital switch brightness controls. Compact and lightweight, the CSR weighs just 10.3 ounces and boasts extremely low power consumption, with 1,000,000 million hours battery life on low power and 50,000 hours on setting 6 from just a single AA battery. The CSR also offers variable brightness and night vision modes, which enables the ability to co-witness with a night vision sight. The responsive Wolverine sights are housed in a single piece of 6061-T6 aluminium that is rubber armoured and protected by a scratch resistant, anti-reflective lens coating. Fog proof and nitrogen purged, the CSRs are designed to provide shooters the ability to take aim in a variety of conditions and temperatures ranging from -22 to 122 F. The Wolverine was built to adapt and is ready for anything. All Wolverine models sport an IP67 waterproof rating and are water submersible to three feet. Wolverine red dot sights have an adjustable mount height and are compatible with Picatinny mounts./p>
Features
- Very low power consumption

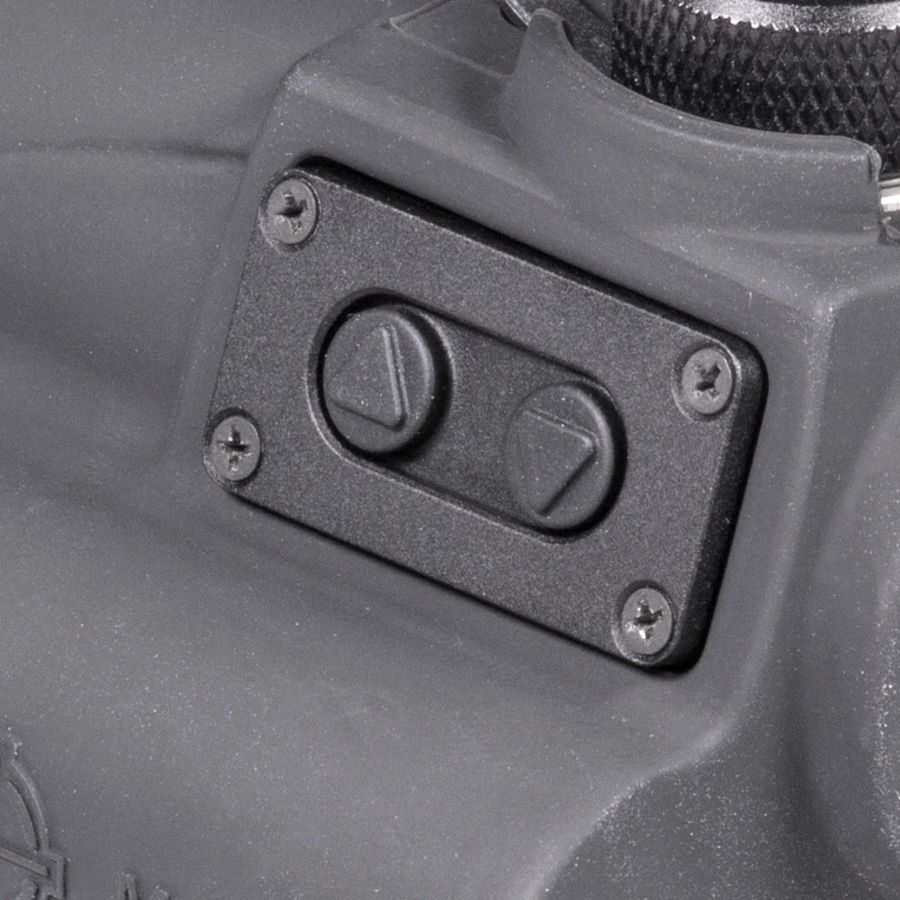

- Digital switch brightness controls
- Scratch resistant, anti-reflective lens coating
- Compact and lightweight design
- Protected adjustment caps
- Rubber armoured, single piece 6061-T6
- Adjustable mount height
- IP67 waterproof rating – submersible to
- Fogproof, nitrogen purged
- Night vision compatible
- Unlimited eye relief
- Shockproof design
- Wide range of operating temperature, -22 to 122 F
- Powered by a single AA battery
Included in Package
- Rubber lens cover
- Picatinny mount
- Riser for absolute co witness
Batteries Used
- Type: AA
- Quantity: 1
Reticle, Type | 4 MOA Dot |
---|---|
Reticle, Colour | Red |
Reticle, Illuminated | yes |
Setting, Brightness | off, NV1, NV2, 3-10 |
Magnification | 1 x |
Dimension, Window | 23 mm |
Material, Window | glass |
Eye Relief | unlimited mm |
Windage Range of Adjustment | 120 MOA |
Elevation Range of Adjustment | 120 MOA |
MOA Adjustment | 1 MOA |
Finish/Colour | Matte black |
Body Material | Aluminium 6061-T6 / rubber |
Maximum Recoil | .338 Win |
IP Standard | IP67 (submersible to 1m / 3ft) |
Shockproof | yes |
Fog Proof | yes |
Lens Coating | AR red |
Mount Type | Weaver/Picatinny |
Battery Type | AA |
Battery Life | (high) 900 – (low) 1,000,000 / 50,000 (setting 6) hours |
Battery Voltage | 1.5 V |
Operating Temp, F/?C | -22 to 122 / -30 to 50 F/C |
Length | 3.3 / 84 in/mm |
Width | 2.8 / 71.6 in/mm |
Height | 2.4 / 61.1 in/mm |
Weight | 10.3 oz |
