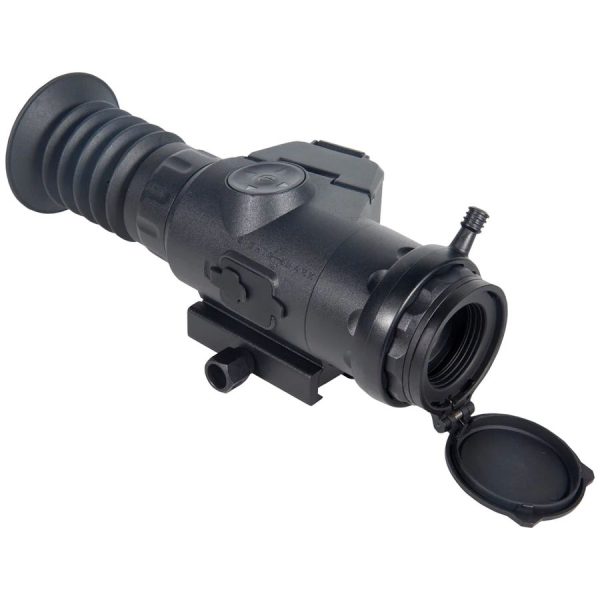

Sightmark Wraith 4K Mini 2-16×32 Digital Day/Night Vision Riflescope
The Wraith 4K Mini 2-16×32 Digital Riflescope combines Sightmark’s rugged quality with the most advanced digital optic technology available to deliver the finest day/night riflescope known to the firearms industry. Boasting an incredible 4K (3840×2160) CMOS sensor, the Wraith 4K Mini detects objects up to 300 yards away in the darkest of nights and displays them on a flawless 1280×720 FLCOS screen.
Although it’s extremely light and compact, the Wraith 4K Mini features big-time capabilities. The Wraith 4K Mini’s built-in recorder produces .AVI-format videos in 1080p and/or 4K resolution, ensuring every shooting memory is captured and preserved in incredible detail. With 8x digital zoom, full colour HD imaging during the daytime and two digital night vision colour palettes (green or black & white), 850nm IR illuminator and first-focal-plane reticle options, the Wraith 4K Mini enables shooters to locate and engage targets, near or far, with speed and precision.
Supremely durable, the Wraith 4K Mini is a solid aluminium scope that operates in temperatures ranging from 32F to 140F (0 to 60C), shockproof for drops up to 3 ft., IPX6 water resistant and capable of handling recoil up to .308 Winchester.
Features
- 4K Digital Imaging
- 2-16x magnification, 8x digital zoom
- 274 meters / 300-yard night detection range
- Night vision mode
- Daytime colour mode
- Built-in 4K video recording with audio capabilities
- 14 reticle options with 9 colours
Included in Package
- 850nm IR Illuminator
- Flip-up lens cover
- Focus throw lever
- Eye cup
- Fixed picatinny mount (included Long mount with SM18041EU)
- User manual
Battery Used
- Type: 2x CR123A
- Quantity: 1
| Electronic components | |
| Type of sensor | CMOS sensor |
| Sensor resolution, pixels | 4K (3840×2160) |
| Display type | FLCOS |
| Display Resolution, pix. | 1280×720 |
| Built-In Video Recorder Availability | Yes |
| Maximum memory card supported, Gb | 256 |
| Format of video clip | AVI |
| Resolution of video clip | 1080/4K |
| Format of photo files | JPEG |
| Resolution of photo files | 4k |
| Memory capacity | Approximately 1.75 hours video with 64gb SD card on 4k@30 quality level. |
| Optical characteristics | |
| Magnification | 2-16 |
| Lens diameter, mm | 32 |
| Digital zoom | 1-8x |
| Lens focus, mm | 50.3mm |
| Field of View,°, horizontal | 7.62 |
| Field of View, m@100m | 13.33 |
| Field of View, ft@100yd | 40 |
| Minimum focusing distance, ft/m | 5/1.524 |
| Eye Relief, in/mm | 2.4 / 60 |
| Diopter adjustment, dptr. | -6 to +3 |
| IR-illuminator | |
| Emitter | LED |
| IR Wavelength, nm | 850nm |
| Equivalent IR Power, mW | ~1060 on high, ~540 on medium, ~400 on low |
| Battery Life | 2 hours on high |
| Battery type | 2x CR123A |
| Range of Detection | |
| Night Vision detection range, yd/m | 300/274 |
| Power Supply | |
| Power Supply, v | 6 |
| Battery type | 2x CR123A |
| Battery life | 3.6Hrs Video Mode/ 4.4Hrs Preview Mode |
| External Power Supply | 5V via micro USB |
| Reticle | |
| Windage & Elevation click value | 1 pixel/ ~X0.4MOA |
| Adjustment range, elevation | ~ 150 MOA |
| Adjustment range, windage | ~ 350 MOA |
| Number of reticle options | 10 SFP 4FFP |
| Colours | Black, white, red, blue, green, cyan, orange, yellow, magenta |
| Physical & operational characteristics | |
| Body Material | Aluminium |
| Accessory rail mount | Picatinny |
| Operating Temp,°F / C° | 32 to 140 / 0 to 60 |
| Waterproof rating | IPX6 – water resistant |
| Nitrogen Purged, yes/no | no |
| Shockproof, yes/no | yes, 3ft |
| Maximum recoil, calibre | .308 |
| Tube diameter | n/a |
| Length, in/mm | 6.299/160 |
| Width, in/mm | 3.031/77 |
| Height, in/mm | 2.913/74 |
| Weight (with batteries), oz | 21.6 oz |
